Modular Data Center

Essential Equipment for Big Data Computing Power Centers: Micro-Module Architecture and Related Products for Ensuring Server Reliability.

Consult

Features Technical Indicators Overall Dimension

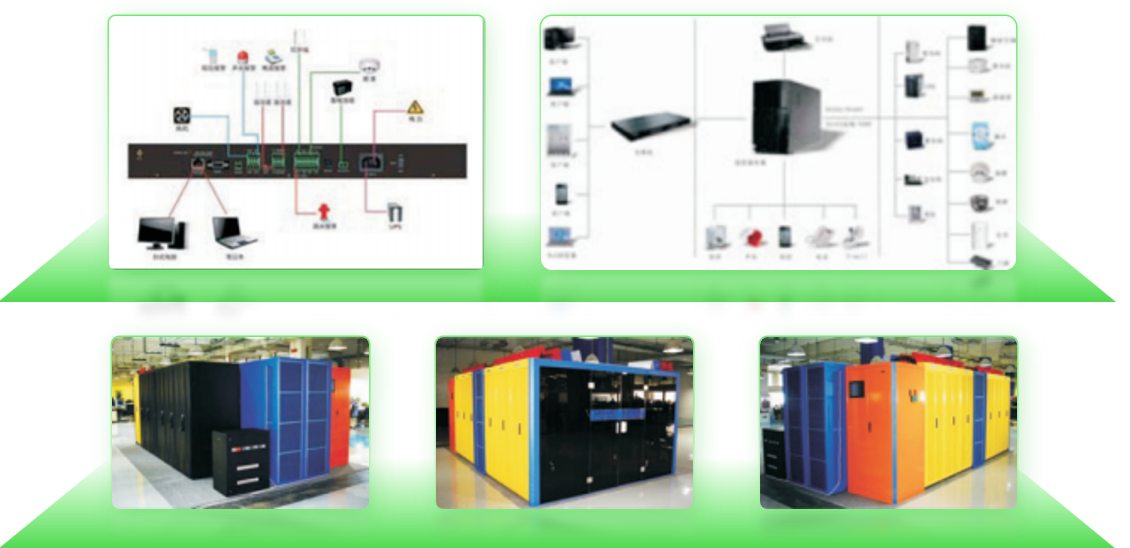

The module integrates cabinet, cooling, power distribution, monitoring, and cabling systems. Access doors and roof panels automatically open upon fire alarm or overtemperature. It comes with integrated smoke, water leakage, and temperature/humidity monitoring systems.

Containerized Data Center

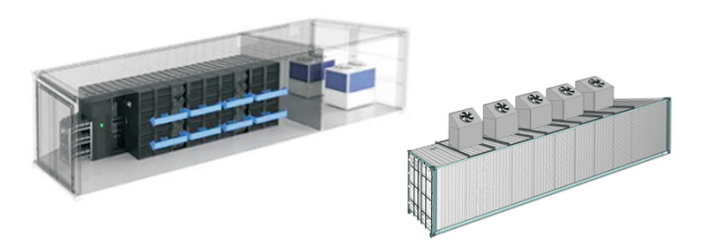

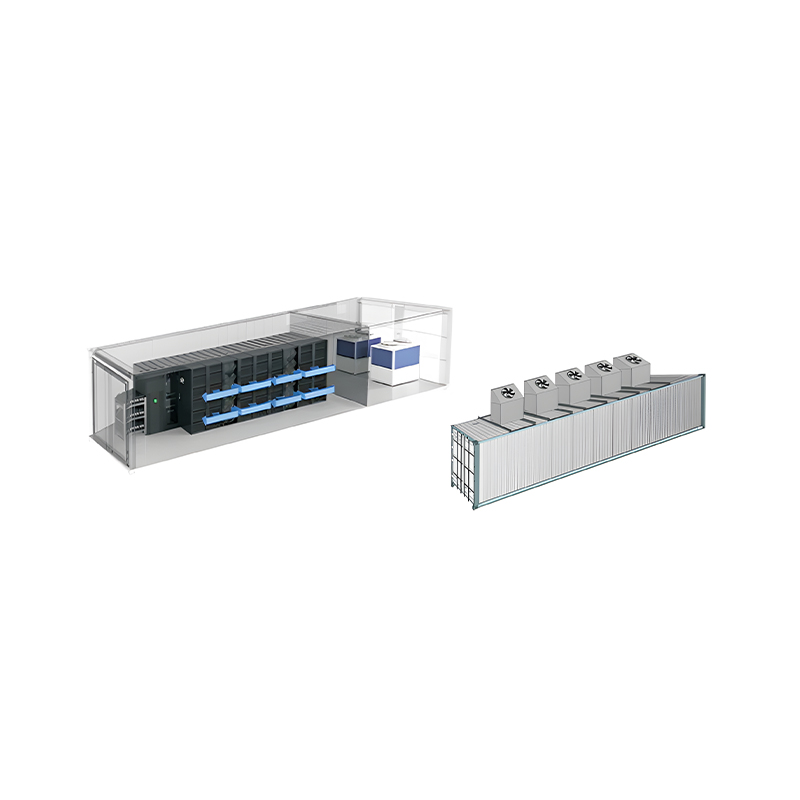

A Containerized Data Center is a fully integrated system housed within a standard 40-foot shipping container. It incorporates all essential functional subsystems required for data center operations, including power distribution (with PDU, UPS, and batteries), precision air conditioning, physical security, an environmental monitoring system, and fire suppression. Once connected to a power source, it operates independently as a self-contained unit, enabling a productized and standardized approach to data center deployment.

Container Size	12192×2438×2591mm
Weight	Without IT equipment: 14,000 kg Fully loaded with IT equipment: 28,000 kg
IT Racks per Container	10
Rack Size	540×1100×2000mm
U Space per Rack	42U
Power Voltage	380V
Average IT Load per Rack	9KW
Max IT Load per Container	90KW
Cooling System	In-row, air-cooled, horizontal airflow precision air conditioners, 25kW × (4+1) Redundant configuration. Outdoor units are top-mounted.
Monitoring System	Access Control, Video Surveillance, and Building Management System (BMS). The interface must support Chinese, English, and Russian.
Fire Alarm System	Smoke and Heat Detection Fire Alarm System
Gas Fire Suppression	HFC-227（FM200）
UPS	Modular UPS, capacity as required
Battery	15-minute backup time
Utility Power Input	150KW
